Project Portfolio

300+ Equipment Delivered

A selection of completed industrial automation projects delivered worldwide since 2014.

Automatic Assembly Machine
Automatic Assembly Machine
  • — Cycle time: 1 s
  • — 16-jig rotary table with quick-change fixtures
  • — Simultaneous assembly of two products
  • — Assembly of multiple product subtypes
  • — Vibratory bowl and linear feeding systems
  • — Servo-driven InnoUnits Pick & Place
  • — InnoUnits refill modules
42/52 POS Cover-Lever Assy - 2024
Automatic Assembly Machine
Assembly and inspection of plastic connector components
Cycle time: 1 s
Palletizing System
Palletizing System
  • — Cycle time: 0.5 s
  • — Approx. 33,000,000 pcs/year
  • — Handles multiple product types
  • — Integrated paper-band handling
  • — Buffer station to ensure continuous operation
  • — Full monitoring for breakage detection
  • — Encoder-based piece counting
FAKRA S&F Dielectric pin - 2022
Palletizing System
Handling and palletizing continuous plastic product tape
~33 M pcs / year
Marsilli winding machine loading and packaging automation
Winding machine support — 2022
Marsilli winding machine loading and packaging automation
  • — 5 tray feeding and packaging stations
  • — > 37 min autonomous operation
  • — SCARA loading and packaging robots
  • — Camera-based inspection
  • — 3 pallets with 8 winding-machine positions each for continuous operation
TDK mains interference suppression choke winding / 2022
Automatic winding-machine loading and packaging system
Parallel winding, feeding and packaging of 8 mains interference suppression chokes
Cycle time: 4.5 s
Automatic heating-wire winding machine
Heating-wire winding — 2023
Automatic heating-wire winding machine
  • — Simultaneous winding of two wires
  • — TCP/IP data collection
  • — Dynamic resistance measurement
  • — Automatic control
Beurer single-phase heating-wire winding / 2023
Automatic heating-wire winding machine
Winding of heating wire for Beurer household electrical appliances
800 metres/hour
HDSCS TAB connector assembly machine development
Assembly machine development — 2025
Automated assembly and packaging machine
  • — Modification of an existing machine for assembly of a new product
  • — 5 variants of the new product
  • — 32 stations
  • — Vibratory bowl and linear feeding systems for automatic component supply
  • — Pick-and-place and small rotary table system for automated pre-assembly outside the main machine
  • — Quick-change fixtures for easy product changeover
HDSCS TAB connector assembly machine development / 2025
Automated assembly and packaging machine
Parallel, simultaneous assembly, inspection and packaging of the original and new product (BMW 2302238 connector)
Cycle time: 0.8 s/pc
DKD automatic assembly machine
Assembly machine — 2024
Automated assembly and packaging machine
  • — Half-bobbin feeding by vibratory bowl
  • — Unwinding the lead wire, cutting it to length and then inserting it
  • — Delta-robot pallet packaging
DKD automatic assembly machine / 2024
Dual rotary-table automatic assembly equipment with Delta-robot packaging
Insertion of the lead wires of D-core chokes into the half-bobbin, followed by assembly with the ferrite core, inductance measurement and placement into pallets
Cycle time: 3.5 s/pc

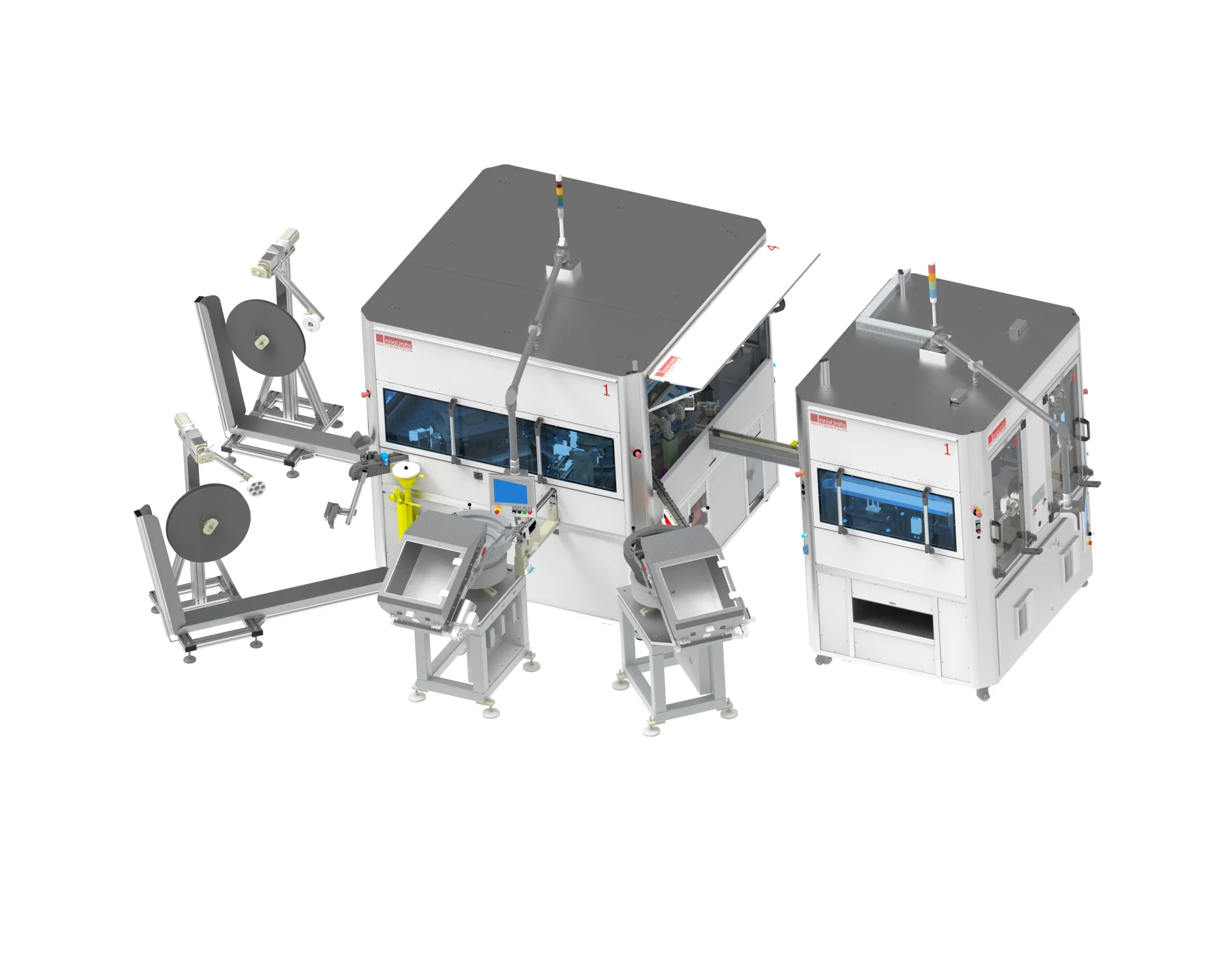

AMP MCP 2.8 Tab Housing automatic assembly and packaging machine
Assembly machine — 2026
Automated Assembly and Packaging Machine
  • — 16 automated assembly stations
  • — 5 different product variants
  • — Fully automated assembly process
  • — Integrated welding process
  • — Custom-designed cutting and bending tool
  • — Fast and easy replacement of the cutting and bending tool thanks to the quick-change design
  • — Automatic component feeding and positioning with our custom-designed vibratory feeders
AMP MCP 2.8 Tab Housing Automatic Assembly / 2026
Automated Assembly and Packaging Machine
Automatic assembly and packaging of the AMP MCP 2.8 Tab Housing electrical connector
Cycle time: 7 s

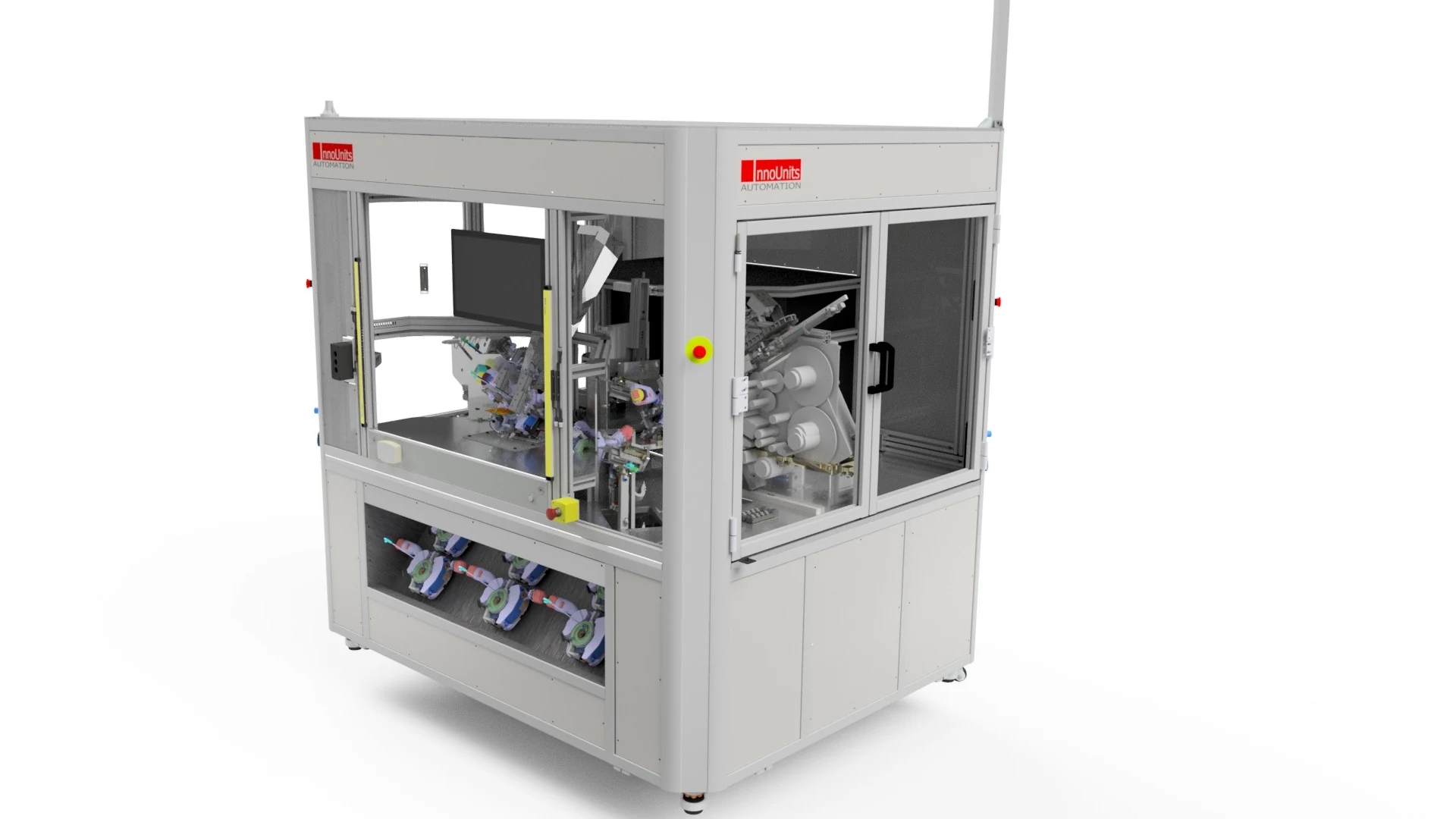

Volvo VTNA End-of-Line Tester
Testing — 2023
Volvo VTNA End-of-Line Tester
  • — Semi-automatic, 4-jig rotary table
  • — Cycle time: 45 sec
  • — Dynamic resistance measurement
  • — Torque measurement
  • — Electrical measurement
  • — Illuminated-symbol inspection
  • — Screw-height inspection
  • — Label printing
  • — 20 different product variants
Volvo VTNA End-of-Line Tester / 2023
Semi-automatic EOLT equipment
End-of-line testing and inspection of TCM and Clockspring product modules
Cycle time: 45 sec

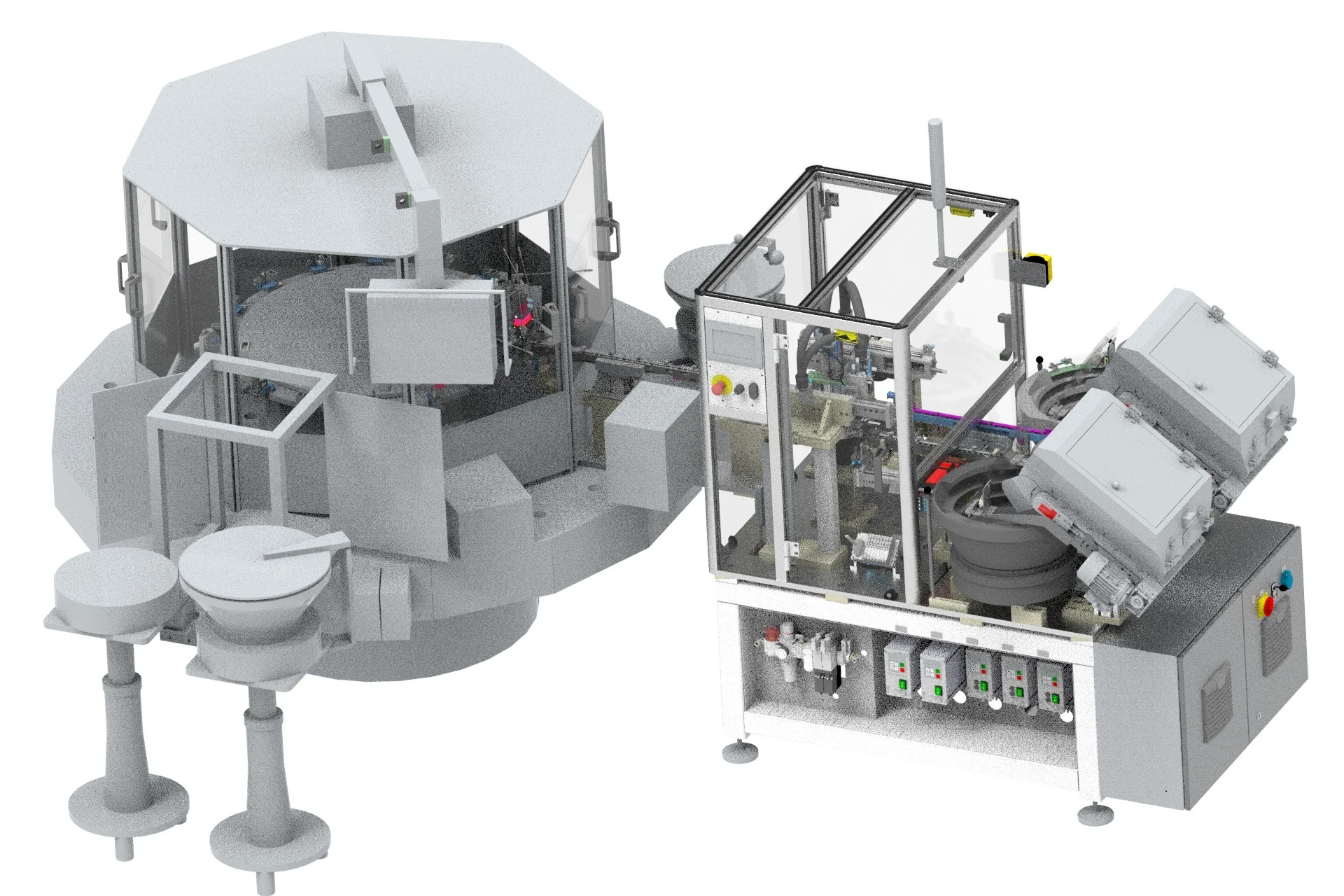

MQS connector automatic assembly and packaging machine
Assembly machine — 2025
Automated Assembly and Packaging Machine
  • — Modification of an existing machine to integrate a new component
  • — The new station utilizes the available space on the existing machine
  • — The cover insertion station is located separately from the main machine cabin
  • — The new station has an independent PLC control system
  • — Dedicated HMI operator panel for machine operation and monitoring
  • — Easy changeover to another product thanks to the quick-change fixture design
  • — Independent safety circuit for the new station
MQS Connector Automatic Assembly / 2025
Automated Assembly and Packaging Machine
Automatic assembly and packaging of the MQS electrical connector
Cycle time: 2 s

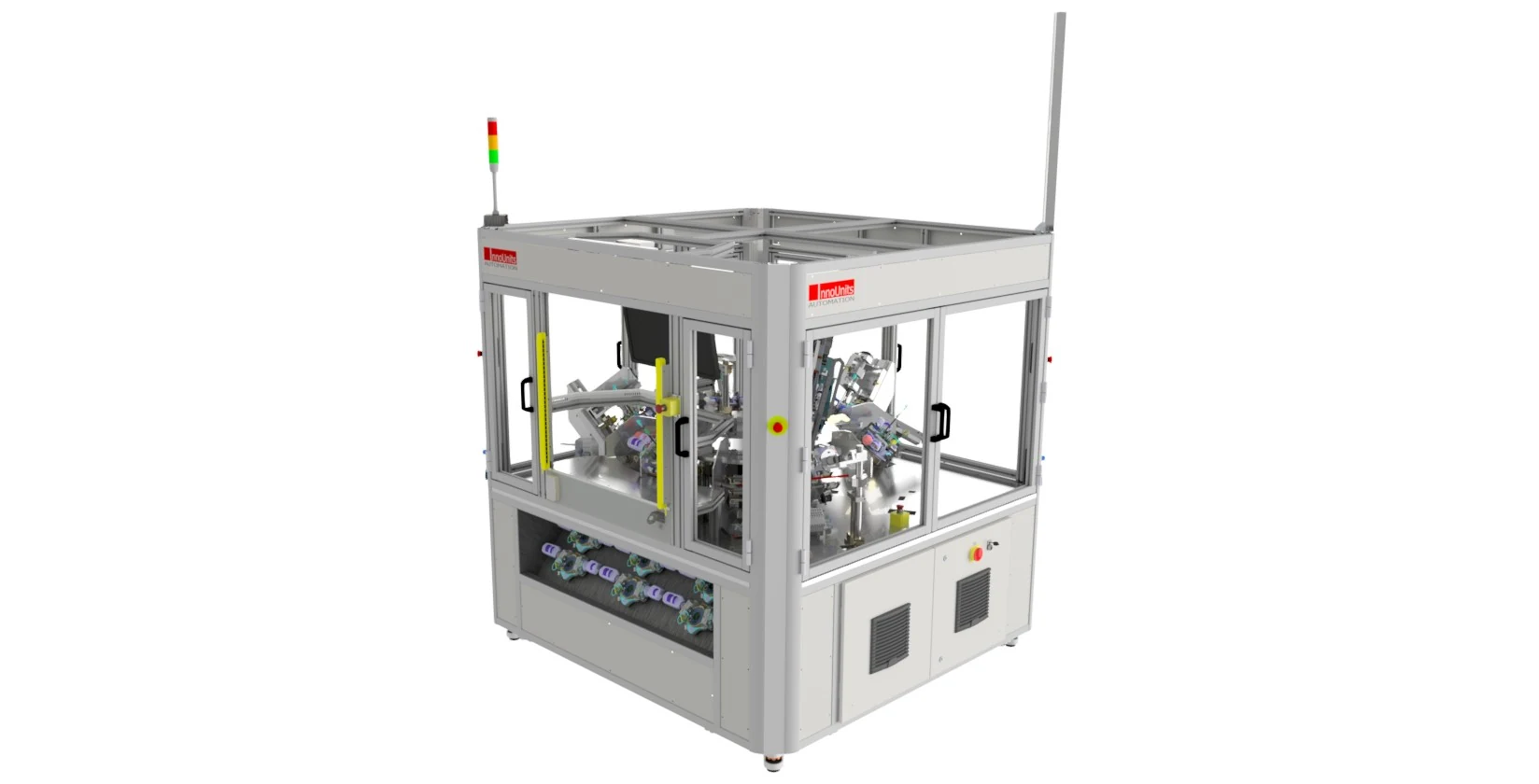

DAF TCM End-of-Line Tester
Testing — 2020
DAF TCM End-of-Line Tester
  • — Semi-automatic, 6-jig rotary table
  • — Cycle time: 45 sec
  • — Product testing and calibration
  • — Electrical and functional inspection
  • — Torque measurement
  • — Symbol inspection
  • — Label printing
  • — 10 different product variants
DAF TCM End-of-Line Tester / 2020
Semi-automatic EOLT equipment
End-of-line testing and inspection of TCM product modules
Cycle time: 45 sec

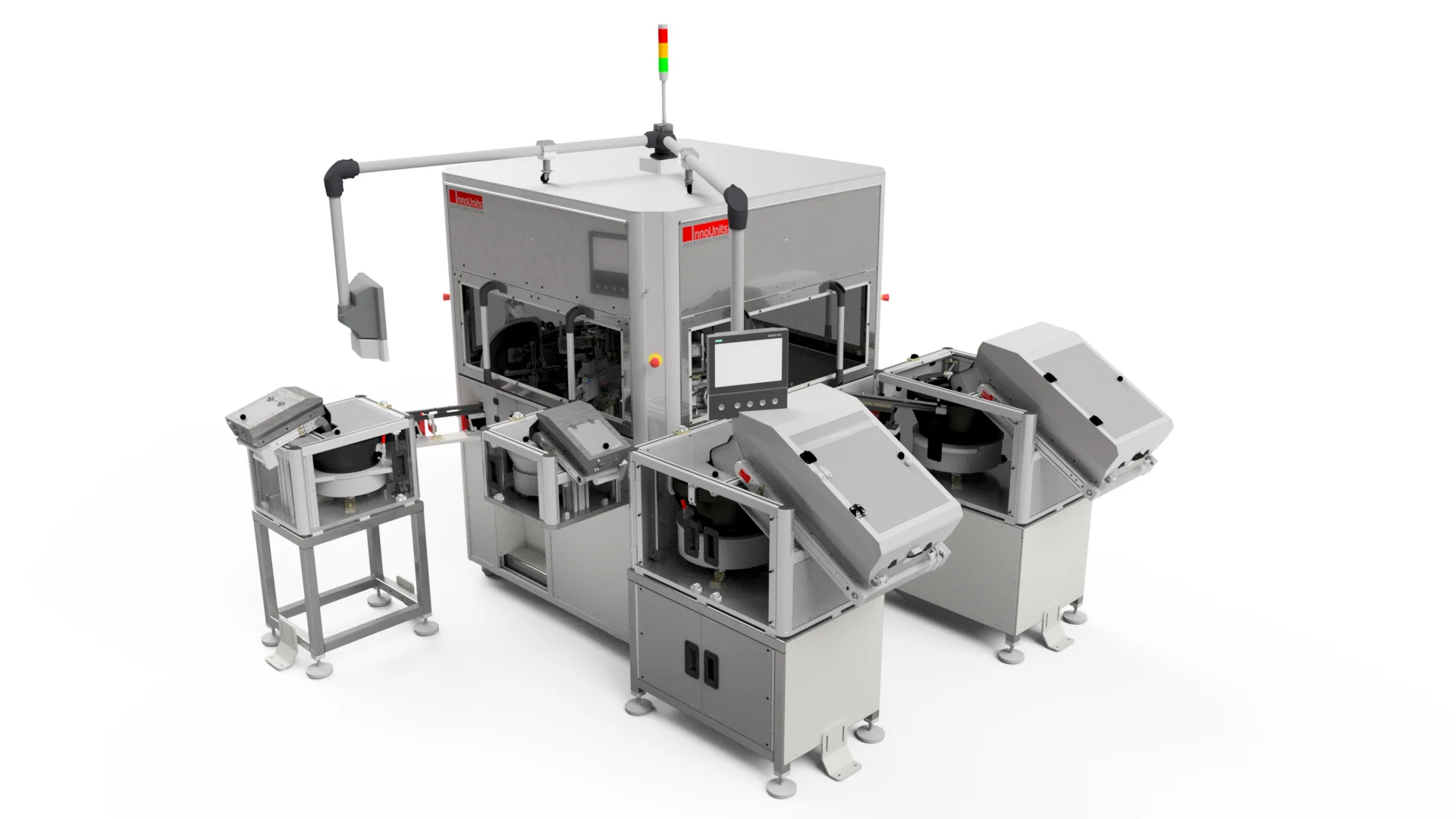

Automatic assembly machine for Volkswagen and Volvo 7-way connectors
Assembly / Inspection — 2021
Automatic Assembly Machine
  • — Fully automated assembly of different product variants
  • — Vibratory bowl and linear feeding systems
  • — In-house replenishment feeding system
  • — 16-jig rotary table with interchangeable nests
  • — Cycle time: 2.5 sec
  • — Custom servo-driven Pick & Place developed for the specific application
  • — Seal insertion unit
  • — Camera-based inspection system
Volkswagen and Volvo 7-Way Connector / 2021
Automatic Connector Assembly Machine
Connector assembled from four automatically fed components. After inspection of assembly quality, the product is transferred to packaging.
Cycle time: 2.5 sec

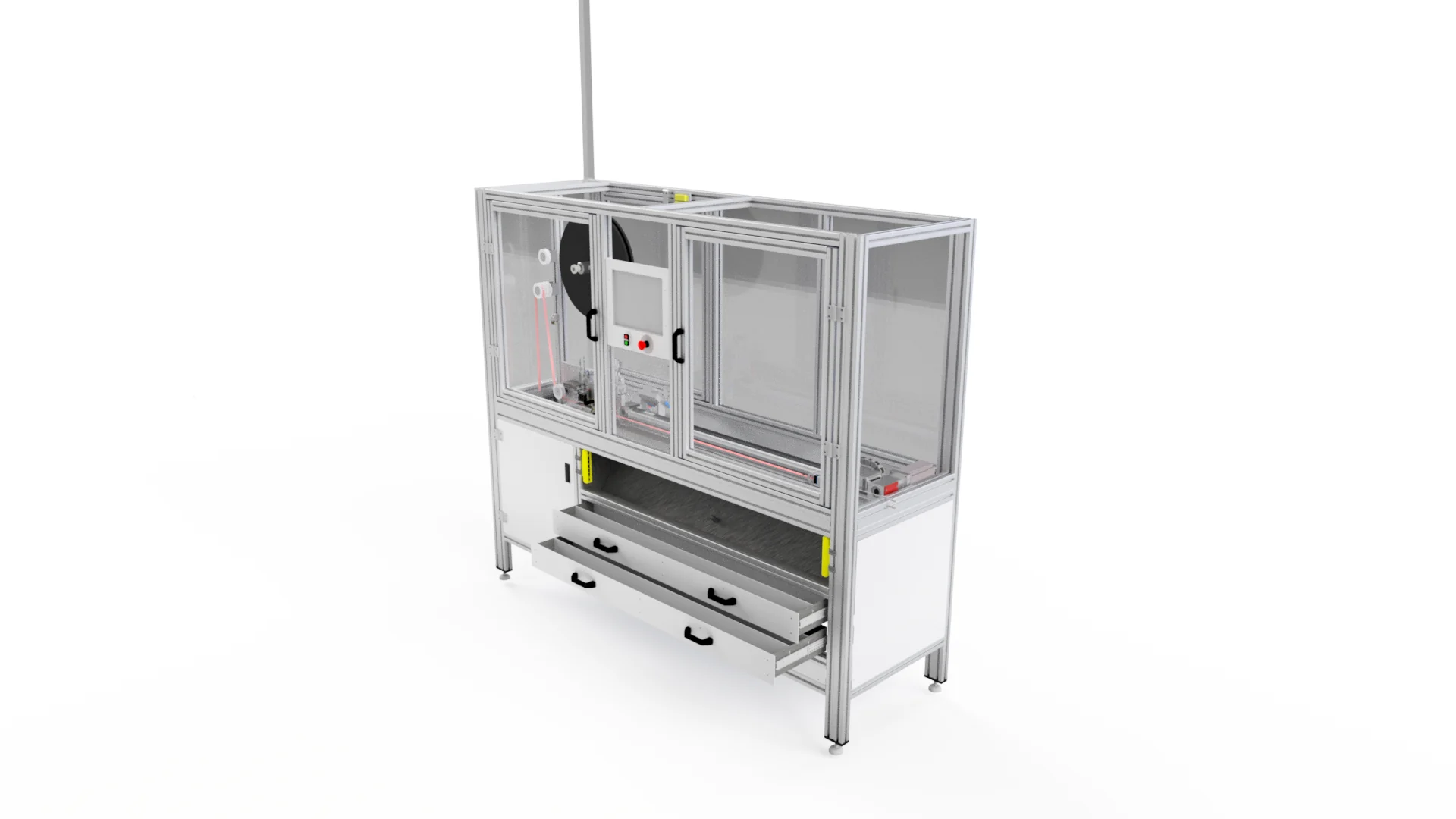

BMW clockspring flat cable cutter
Automated Cutting — 2018
BMW Clockspring Flat Cable Cutter
  • — Automatic unwinding and positioning of flexible flat cable
  • — Automatic cutting and marking
  • — Cutting accuracy: 0.1 mm
  • — Preset product types with the option to add additional cable types
  • — Storage capability for cut products
BMW Clockspring Flat Cable / 2018
Automatic Cutting of Flexible Flat Cable
Flat cable fed from a cable reel is automatically cut, marked and stored in the required quantity.
Accuracy: 0.1 mm

These are selected examples. We have completed more than 300 systems worldwide. Contact us to discuss your project.
