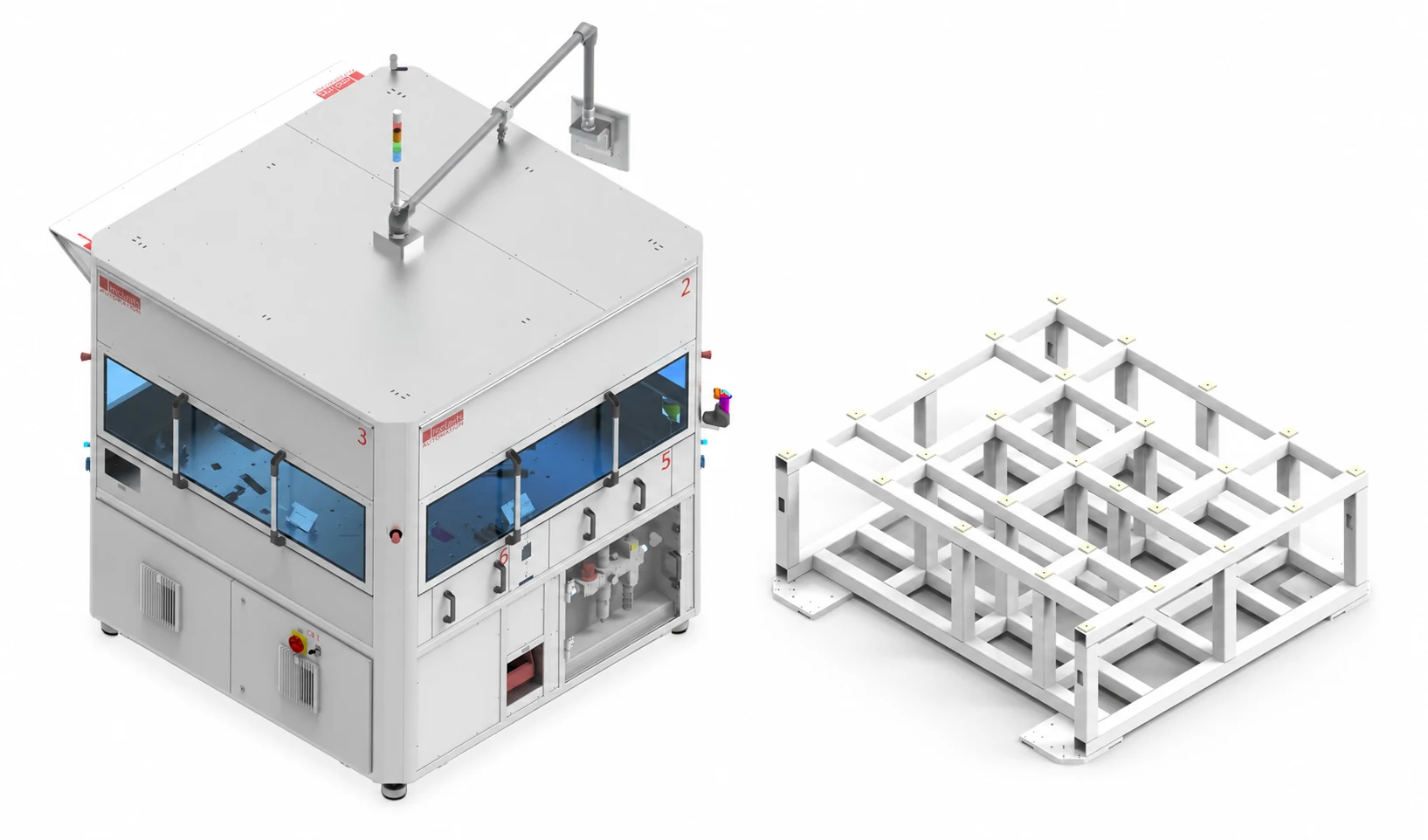

Standard Machine Frame
Welded base frame with face-milled upper surface for accurate horizontal geometry. Upward-opening doors and a 40×40 mm profile structure.
- Sizes: 1200 / 1400 / 1600 / 2000 / 2100 mm
- Face-milled upper surface
- Upward-opening doors
- 40×40 mm Bosch-profile-compatible structure and fasteners
- Customizable to customer requirements

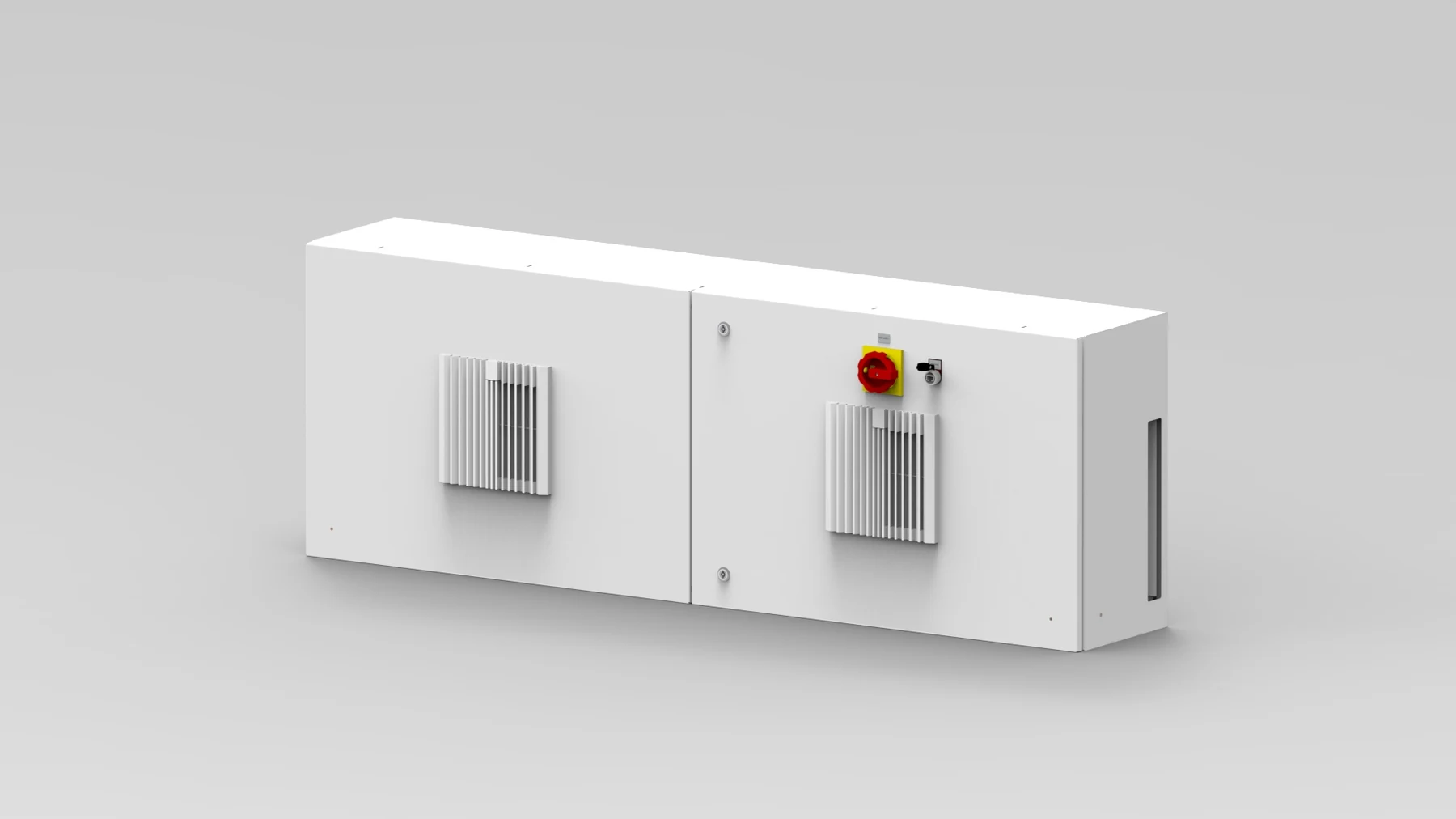

Custom Electrical Cabinet
Designed in-house for efficient use of the available space. Also available in sizes matched to the standard machine frames.
- Sizes: 1200–2100 mm
- In-house design
- Maximum space utilization
- Customizable to customer requirements

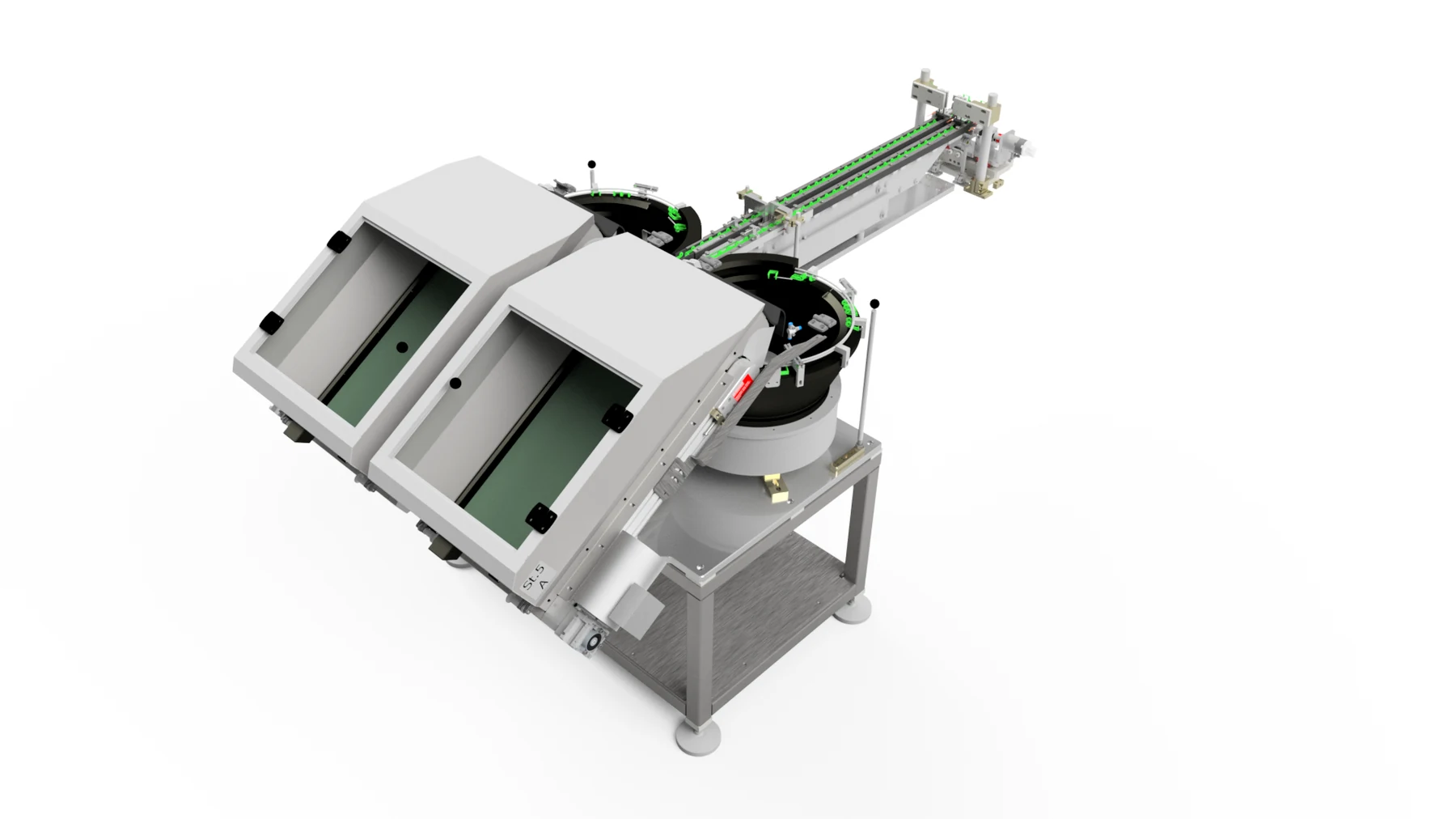

Vibratory Feeder System
Complete feeder systems including feeder bowls — designed and manufactured in-house. Accurate orientation, high throughput and reliable operation.
- Complete in-house manufacturing
- Product-specific feeder bowl made from engineered plastic or welded stainless steel sheet
- Compact linear-track design
- Refill unit and end-of-track separation available when required

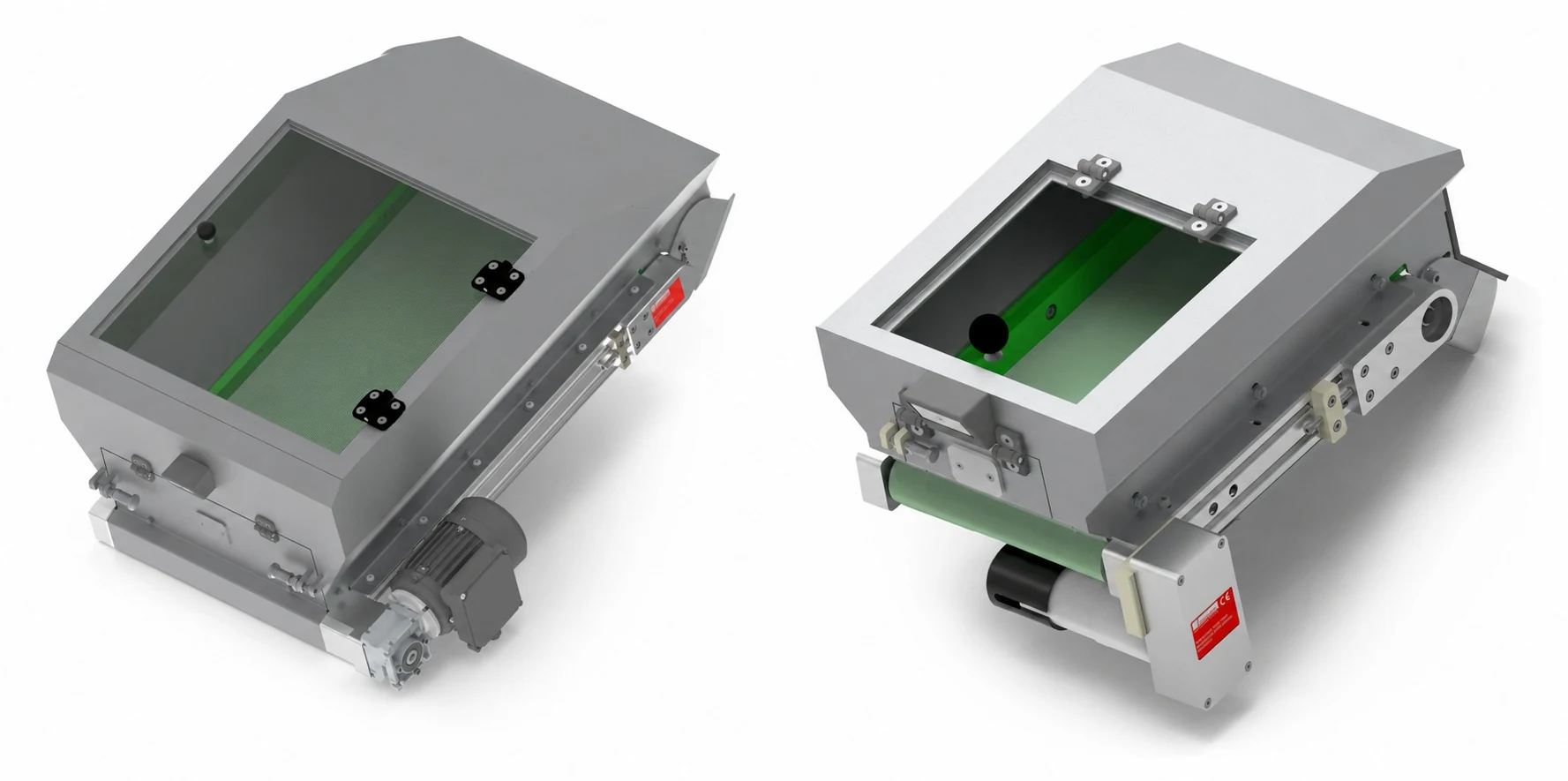

Inclined Hopper
Custom bulk-material hoppers ensuring reliable component replenishment to the feeder bowl.
- Capacity: 6–50 litres
- Product-specific design
- Integrates with feeder bowls
- Custom dimensions available when required

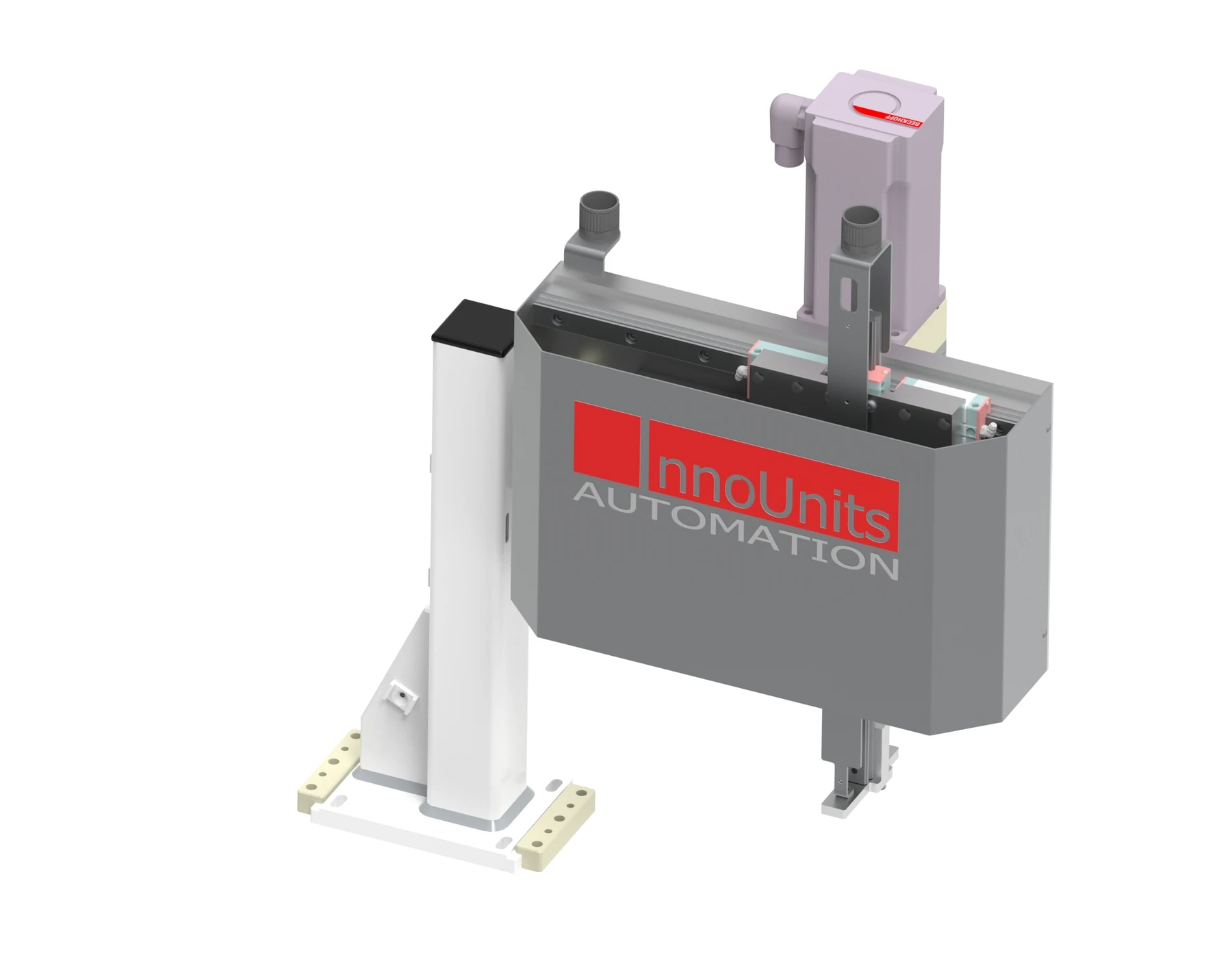

Pick & Place Module
Servo-driven handling module for fast and precise component positioning. Robust welded stand, stable dual linear-guide system and low maintenance requirements.
- Cycle time < 2 s
- Y stroke: 150 ±10 mm
- Z stroke: max. 40 mm
- Servo drive
- Dual linear-guide system

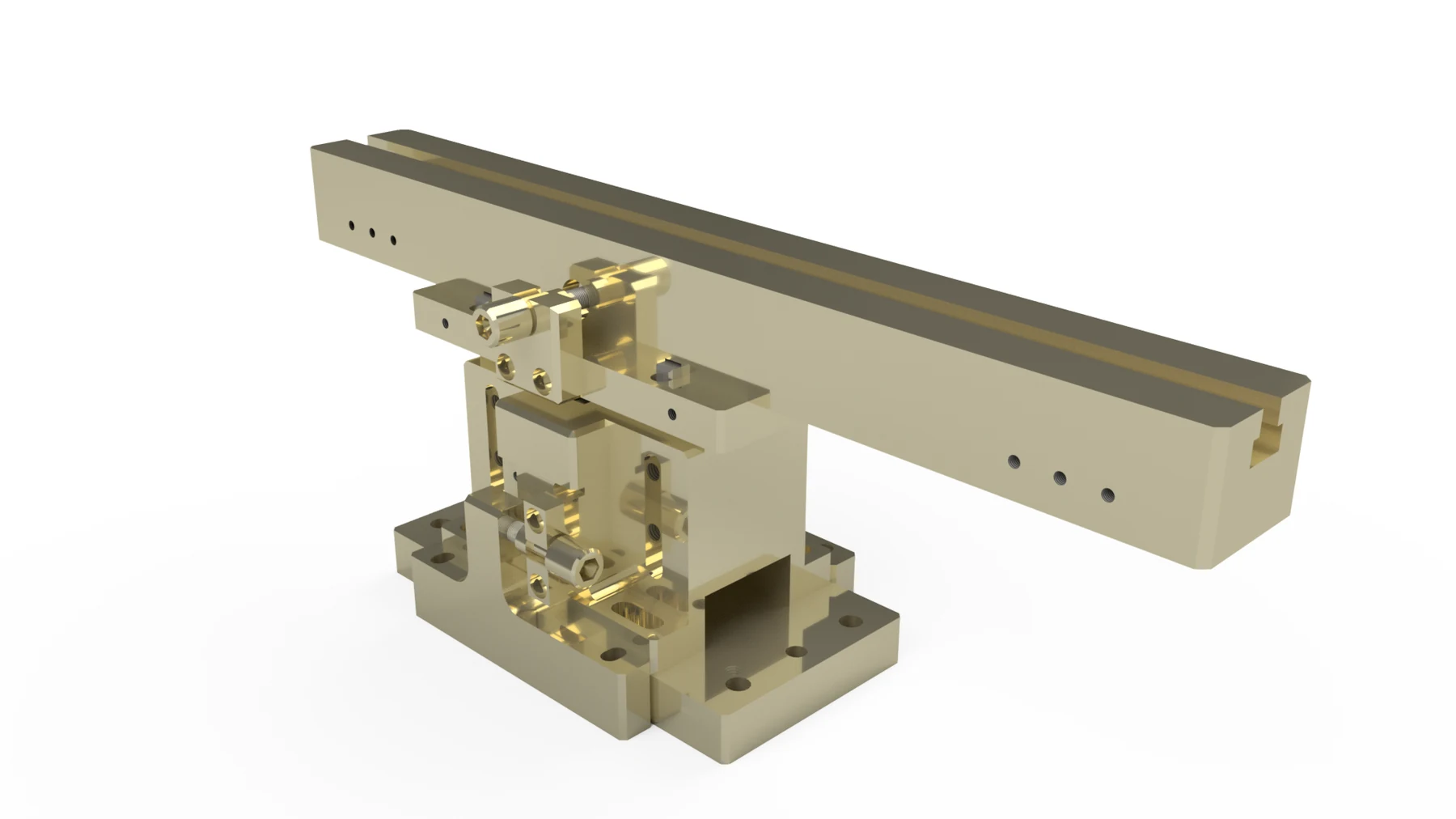

Linear Feeder Adjustable Stand
Precision-adjustable stand for linear feeders. Fine-adjustment screws provide accurate positioning along all three axes.
- Height adjustment: ±8 mm
- Lateral adjustment: ±12.5 mm
- Forward / backward adjustment: ±7.5 mm
- Fine-adjustment screws

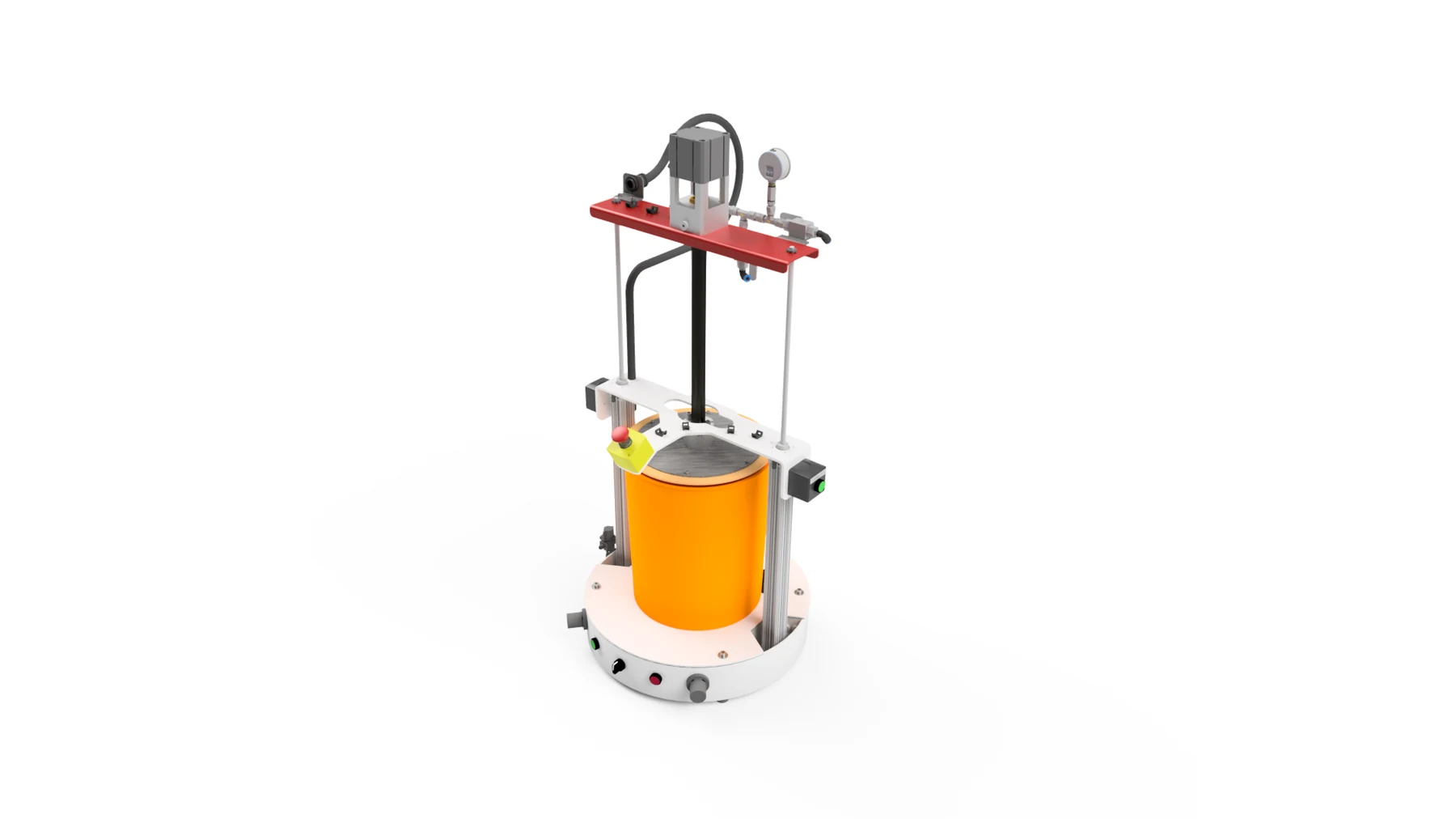

High-Pressure Dosing Grease Pump
Two-hand operated dosing pump for precise grease application at assembly stations.
- Two-hand operation
- Pressure ratio 1:15

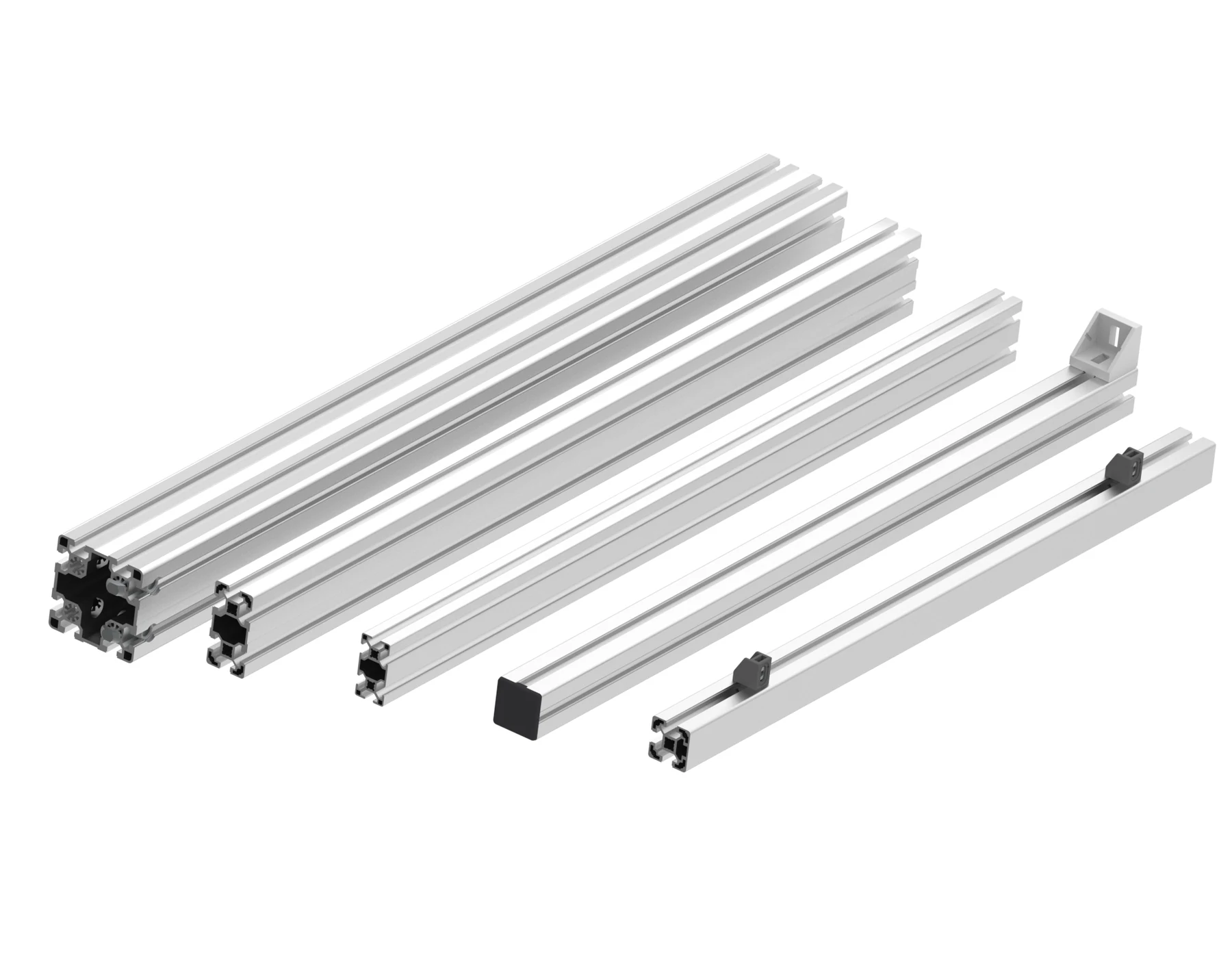

Bosch-Profile-Compatible Components
Our equipment is built using Bosch-profile-compatible structural profiles and fasteners.
- High degree of modularity
- Wide range of components
